At ELDAC Process Automation, our Power Transducers offer precise measurement and conversion of electrical power into industry-standard signals, enabling industries to monitor and control their energy usage with accuracy. These transducers provide crucial data on power consumption, which is essential for optimizing energy efficiency, improving load balancing, and ensuring the overall reliability of power systems. Our power transducers are designed for seamless integration with various monitoring and control systems, allowing industries to track power usage in real-time, identify inefficiencies, and take corrective action as needed. Built for industrial-scale operations, they offer high reliability and durability, ensuring continuous performance in demanding environments. Whether used in power generation, energy distribution, or industrial automation, ELDAC’s power transducers provide industries with the insight they need to enhance operational efficiency and reduce energy waste.
AC/DC current transducer, galvanically isolated from the measuring circuit. The device is in the function and appearance very similar to a standard active TA, however, able to measure the DC component and AC TRMS. The transducer is powered 4-20mA current loop and therefore does not require a direct power supply. It ‘s the first Hall’s effect current transformer loop-powered with 0.5% accuracy on the market. It also has RS485 Output to reduce the Analog input Card in the PLC , the current value can be Read via RS485 to PLC or SCADA, Data Logging System.
QI-50-I
50 Arms o 25 Arms dip-switch setting, bipolar (+/- 50A DC o +/-25A DC)
4-20 Ma
QI-50-V-485
50 Arms o 25 Arms dip-switch setting, bipolar (+/- 50A DC o +/-25A DC), RS485 customize setting
0-10V and RS485
QI-300-V-485
300 A AC/DC, bipolar for DC measurement, RS485 customize setting
0-10V and RS485

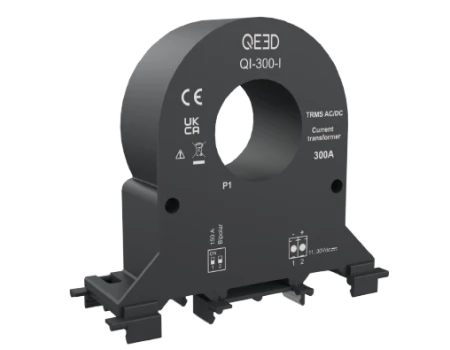

QI-300-I
300 Arms or 150 Arms dip-switch setting, bipolar (+/- 300A DC o +/-150A DC)
4-20 mA

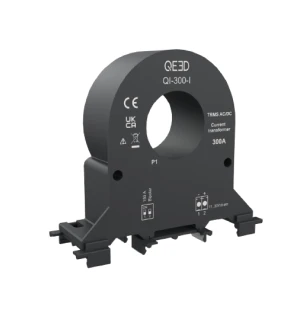

QI-300-I
Converts alternating current from a current transformer into a standard process signal
- Minimum ripple
- Isolation up to 2000 V AC
- High-density mounting
- Conforms to IEC 60688
Product Variant
- Input : 0-1A AC, 0-2A AC , 0-5 A Ac
- Output : 4-20mADC, 0-10VDC, 0-5VDC, +/-10VDC +/-5VDC, 1-5VDC
- Power supply : 110VAC, 230VAC, 24VDC
- Model LTCNE is self-powered Model .
Current Transducers are designed to provide an analog signal proportional to the AC current for monitoring, data logging and panel meter applications. NK Technologies’ current transducers offer a choice of 0–5 VDC, 0–10 VDC or 4–20 mA average responding or True RMS outputs. Self-powered and split-core options make these a cost-effective choice as a PLC input in motor status applications or where VFDs are involved.
Features:
- Average responding or True RMS output
- Jumper-selectable ranges
- Solid-core, split-core and large aperture model
AT Series
Analog Output, 2-wire, Average Responding
Load 200 A or lower
0–5 VDC 0–10 VDC 4–20 mA
ATR Series
Analog Output, 2-wire, True RMS
Load 200 A or lower
4–20 mA loop-powered, average or True RMS
AT/ATR-TH Series
Analog Output, 4-wire, Average or
RMS Responding
Load 200 A or lower
0–5 VDC 0–10 VDC 4–20 mA
ATP Series
Analog Output, 4-wire, Average Responding
Load 200 A or lower
4–20 mA loop-powered, average or True RMS
ATPR Series
Analog Output, Voltage Output, True RMS
Load 200 A or lower
0–5 VDC 0–10 VDC 4–20 mA
ATH Series
Time Integrated for Burst Fired Circuits
Load 200 A or lower
0–5 VDC 0–10 VDC 4–20 mA
ATQ Series
Frequency Output
Load 200 A or lower
5 KHz at full range current, 10 KHz at full range current
ATS Series With Digital Setpoint Display
Current Transducer/Switch
Load 200 A or lower
Isolated solid-state switch
AT/ATR-FD Series
Analog Output, 2-wire Loop Powered
Load 400 A or lower
4–20 mA loop-powered, average or True RMS
AT/ATR-MS Series
Analog Output, 2-wire Split-core
Load 800 A or lower
4–20 mA loop-powered, average or True RMS
ATS Series With Rotary Switch Setpoint
Current Transducer/Switch
Load 1200 A or lower
4–20 Ma
AT/ATR-LS Series
Analog Output, 2-wire Split-core
Load 1600 A or lower
4–20 mA loop-powered, average or True RMS
AT/ATR-FL Series
Analog Output, 2-wire
Load 2000 A or lower
4–20 mA loop-powered
ATCR Series
Analog Output, Flexible Loop Design
Load 2000 A or lower
4–20 mA loop-powered, True RMS
ATP/ATPR-FL Series
Analog Output, 4-wire
Load 2000 A or lower
0–5 VDC 0–10 VDC 4–20 mA
AS1 Series
Adjustable Setpoint, Go-No-Go or Manual Bypass
Load 1–150 A (Single Range)
- Isolated solid-state switch
- N.O. Version 0.15 A @ 240 VAC or VDC
- N.C. Version: 0.2 A @ 135 VAC or VDC
- Not polarity sensitive
ASL Series
Single-turn Adjustment
Load 1–150 A (Single Range)
- Isolated solid-state switch (AC/DC)
- 150 mA @ 240 VAC/VDC N.O.
- 200 mA @ 135 VAC/VDC N.C.
- (General use only)
ASM Series
Self-calibrating Smart-Switch
Load 1–150 A (Single Range)
- Isolated solid-state switch
- N.O. Version: 0.30 A @ 135 VAC/VDC
- N.C. Version: 0.20 A @ 135 VAC/VDC
- Not polarity sensitive
ASC Series
Factory-calibrated Setpoint
Load 1–150 A (Single Range)
- Isolated solid-state switch
- N.O. Version: 0.3 A @ 135 VAC or VDC
- N.C. Version: 0.2 A @ 135 VAC or VDC
- Not polarity sensitive
ASD SERIES
Rotary Setpoint Selection, Digital Display
Load 1–150 A (Single Range)
- solated solid-state switch
- Max.: 1.0 A @ 240 VAC (general use)
AS1 Series Compact Case
Go-No-Go, Small Housing
Load 0.5 A or higher
(Non-adjustable)
- Isolated solid-state relay
- 0.2 A @ 120 VAC/DC (N.O.)
- 0.15 A @ 135 VAC/DC (N.C.)
AS3 Series
Immediate Contact Action
Load 1.5–200 A (Selectable Ranges)
- Isolated solid-state switch
- 1.0 A @ 240 VAC (standard AC units)
- 0.15 A @ 30 VDC (standard DC & multi-pole units)
- 3 A @ 120 VAC (-03 option)
- 15 A @ 120 VAC, 10 A @ 240 VAC (-15 option)
- When mounted on 1ft2, 930 cm2 metal surface.
- Max 3 A in free air.
ASX Series
Optional Delay on Current Rise
- Isolated solid-state switch
- NOAC/NCAC: 1 A @ 240 VAC (general use)
- NOU: 0.15 A @ 240 VAC or VDC (general use)
- NCU: 0.2 A @ 135 VAC or VDC (general use)
ATS Series
Current Transducer/Switch, Digital Display Setpoint
- ATS1: 0–50 A
- ATS2: 0–200 A
- 4-20 mA DC
- 0-5 VDC
- 0-10 VDC
ASXP Series
SPST Relay Output
- ASXP1: 1–20 A (adjustable)
- ASXP2: 20–50 A (adjustable)
- ASXP3: 50–80 A (adjustable)
- Electromechanical SPDT relay
- 1 A @ 120 VAC;
- 2 A @ 30 VDC
- (general use)
AS1 NOR-FT-GO Series
SPST Relay Output
- Load > 6 A
- Go/No-go 5.8 A
- (factory set)
- Electromechanical SPST relay
- 5 A @ 250 VAC
- 5 A @ 30 VDC
AS0 Series
Ultra-low Current Sensor
- Low Range: 3–15 mA (adjustable)
- High Range: 15–350 mA (adjustable)
- AC Version: 1 A @ 240 VAC
- DC Version: 0.15 A @ 30 VDC
ASP-FD Series
Dual Relay Outputs
Load 1- 400 A
- Dual single pole, double throw relays
- Maximums: 1.0 A up to 120 VAC
- 2A to 30 VDC (general use)
ASXP-MS Series
SPDT Relay Output
Load 0–800 A
- Electromechanical SPDT relay
- 1 A @ 120 VAC,
- 2 A @ 30 VDC max.
ATS Series
Current Transducer/Switch, Rotary Setpoint Selection
Load 0–1200 A
- Electromechanical SPDT relay
- 4–20 mA
ASXP-LS Series
SPDT Relay Output
Load 0–1600 A
- Electromechanical SPDT relay
- 1 A @ 120 VAC,
- 2 A @ 30 VDC max.
DS1Series
Compact, Solid-State
0.75 ADC
- Isolated solid-state switch
- 1 A up to 30 VDC
DS3 Series
Hall-effect Sensor
2–20, 10–50 and 20–100 A, jumper-selectable
(2–14, 10–35, 20–70 A AC)
- Isolated solid-state (NOU) or relay (SDT) contacts Solid-state: 0.15 A @ 240 VAC or VDC (N.O. only)*
- Relay: 5.0 A @ 250 VAC, 5.0 A @ 30 VDC (SPDT only)*
- General use
DS1-FD Series
Large AC or DC Current Switch
Adjustment range 20 to 400 ADC (17-338 AAC 60 Hz)
- SPDT relay, 2 A @ 125 VAC, 2 A @ 30 VDC resis
- Single Pole, double throw relay 2 A @ 125 VAC Auto Reset
- Single Pole, double throw relay 2 A @ 125 VAC Latching
Current Transducers are designed to provide an analog current reading for monitoring, data logging and panel meter applications.’ current transducers offer a choice of 0–5 VDC, 0–10 VDC or 4–20 mA outputs common to PLC and energy management system controllers for monitoring of DC motor conditions, solar panel installations, welding processes and transportation applications.
Features:
- Jumper-selectable ranges
- Solid-core, split-core and large aperture models
| MODELS | INPUT | OUTPUT | FEATURES |
|---|---|---|---|
| DT Series | 0–50 A min., 0–400 A max. | a) 0–20 mA, 4–20 mA, 0–5 VDC, 0–10 VDC b) ±10 VDC (Bidirectional models only) | 4-wire Split-core (24 VAC or DC Powered) |
| DT Series | 0–200 A max | 0–20 mA, 4–20 mA, 0–5 VDC, 0–10 VDC | 4-wire Solid-core (24 or 120 V Powered) |
| DT Series | 0–50 A 0–100 A | 0–5 or 0–10 VDC | 3-wire (24 VDC Powered) |
| DT Series | 0–50 A 0–100 A | 0–333 mVDC 0–5 VDC or 0–10 VDC | 33 mVDC or 0–5/0– 10 VDC Output (5 or 12 VDC Powered) |
| DT-FD Series | 0–400 ADC | a) Unipolar (output with DC current in both directions) b) Bipolar (output 4–12–20 mA, 0–2.5–5 V or 0–5–10 V) c) Bidirectional (output +/-5 or +/-10 VDC) | High Voltage (24 VAC/ DC Powered) |
| DT-BB Series | 0–100 A 0–200 A 0–300 A 0–400 A | 0–5 VDC, 0–10 VDC or 4–20 mA Bidirectional models: +/-5 or +/-10 VDC | HV Bus Bar or Panel Mounted |
| DL-DL Series | 0–1200 A DC | 4–20 mA, 0–5 VDC, 0–10 VDC | Large Apertures Measures up to 1200 A |
| DLT Series | 0–20 to 0–400 DC, see ordering information | 4–20 mA, loop-powered | 2-wire (Loop powered) |
HAK Series HAK21
- Accuracy class: 0.5%
- Multiple current input options for wide
- compatibility
- Two available output options: 4-20mA
- or 0-5V
- Features a hinged split-core design for
- fast installation
- Measure up to 200A DC current
- (depending on model)
- Choose uni-directional or bi-directional
- measurements
- RATED CURRENT: 50A, 100A, 200A
- Current Range: 10-120% of rated current
4-20mA or 0-5V
HAB-16555
- Accuracy class: 0.5%
- Choose from five input options
- Two rated outputs: 4-20mA or 0-5V
- rated output
- Non-obtrusive, split core design is
- installer-friendly
- Available as a uni-directional or
- bi-directional device
- CE and RoHS compliant
- RATED CURRENT: 1000A, 2000A, 3000A, 4000A, 5000A
- Current Range: 10-120% of rated current
4-20mA, 0-5V
Detecting ground fault conditions and protecting sensitive equipment or personnel from harm are where AG Series sensors can help. A compact design eliminates two-piece solutions while options include factory-set or field-adjustable trip point; N.O. or N.C. latching or auto-reset relays, 24/120/240 V power supply and noise immunity.
Features:
- N.O./N.C. solid-state switch or mechanical relay outputs
- Field-selectable 5 mA, 10 mA or 30 mA set points
- Noise immunity option for EMI/RFI sensitive environments
- UL, CE approved
AG Series
Contact Trip Point Factory Set between 5 and 950 mA
Factory-calibrated models (specify when ordering):
- AG1: 5–100 mA (005–100)
- AG2: 80–950 mA (080–950)
- TR3 “Tri-set” models (field jumper select):
- AG3: 5, 10, or 30 mA (defaults to lowest setpoint, 5 mA, when jumper is removed)
- Isolated solid-state relay
- Electromechanical SPDT relay
- Solid-state AC Switch 1 A @ 240 VAC
- Solid-state DC Switch 0.15 A @ 30 VDC
- Auto Reset SPDT Relay 1 A @ 120 VAC,
- 2 A @ 30 VDC Latching: SPST Relay 1 A @ 120 VAC,
- 2 A @ 30 VDC
AGV Series
NEW! for Variable Speed Drive Applications
TR3 “Tri-set” models (field switch select):
AGV3: 30, 50, or 100 mA
- Electromechanical SPDT relay
- SPDT Relay 1 A @ 125 VAC,
- 2 A @ 30 VDC resistive
DG Series
DC Only- DC Mechanical Relay Output
5-50 mA (factory set)
Electromechanical relay
1 A @ 120 VAC, 2 A @ 30V DC Max.
AGL Series
Contact Trip Point Factory Set between 5 and 950 mA
- Factory-calibrated models (specify when ordering):
- AGL1: 5–100 mA (005–100)
- AGL2: 80–950 mA (080–950)
- TR3 “Tri-set” models (field jumper select):
- AGL3: 5, 10, or 30 mA (defaults to lowest setpoint, 5 mA, when jumper is removed)
- Electromechanical SPDT relay
- 1 A @ 120 VAC, 2 A @ 30 VDC
AGLD Series
Digital Display
Contact Trip Point Field Selectable between 5 and 950 mA
AGLD1: 5–100 mA
AGLD2: 80–950 mA
Electromechanical SPDT relay
AG-LC Series
Digital Display
Simple Field Setpoint Adjustment
30–150 mA
80–400 mA
300–1500 mA
1.0–5.0 A
Electromechanical relay
1 A @ 120 VAC, 2 A @ 30 VDC resistive
AGT Series
Conductors under 1.76” Diameter
Single range of 0–50 or 0–100 mA; custom
ranges available; consult factory.
4–20 mA, loop-powered (True RMS respond)
AGT-FD Series
0–100 mA
- 0–5 VDC proportional to AC current
- 0–10 VDC proportional to AC current
